2009 Fleetwood Compass™ 721FBS

User Rating RVGuide.com 561 of 980
2009 Travel Trailer RV's
Overall
Performance
Quality & Reliability
Interior
Overall Value
  • MSRP: $24,280.00
  • Financing:
  • Type: Travel Trailer
  • Insurance:

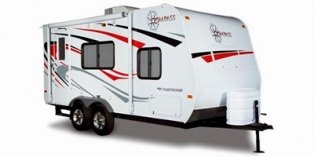

2009 Fleetwood Compass™ 721FBS

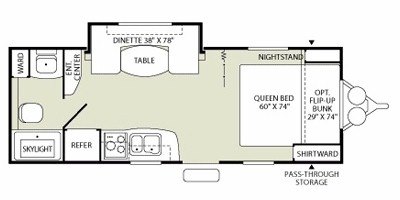

2009 Fleetwood Compass™ 721FBS Floorplan View Floorplan

2009 Fleetwood Compass™ 721FBS Specifications

hide Wheels & Tires:
Wheels Composition  Aluminum
Number Of Axles  2
Rear Tire (Full Spec)  ST205/75 14C
Spare Tire Location  Exterior Mounted
hide Brakes:
Front Brake Type  Not Applicable
Rear Brake Type  Electric Drum
hide Technical Specifications:
Length (ft/m)  23 / 7
Width (in/mm)  84 / 2133.6
Height (in/mm)  113 / 2870.2
Length (ft/ft)  23
Length (ft/in)  0
Dry Weight (lbs/kg)  3558 / 1613.9
Payload Capacity (lbs/kgs)  1342 / 608.7
GVWR (lbs/kgs)  4600 / 2086.6
Hitch Weight (lbs/kgs)  376 / 170.6
Capacities  Standard
Number Of Fresh Water Holding Tanks  1
Total Fresh Water Tank Capacity (gal/l)  30 / 113.6
Number Of Gray Water Holding Tanks  1
Total Gray Water Tank Capacity (gal/l)  30 / 113.6
Number Of Black Water Holding Tanks  1
Total Black Water Tank Capacity (gal/l)  20 / 75.7
Propane Tank (s)  Standard
Number Of Propane Tanks  2
Total Propane Tank Capacity (gal/lbs)  9.4 / 40
hide Exterior:
Body Material  Aluminum
Sidewall Construction  Fiberglass
Number of Doors  1
Sliding Glass Door  No
Number of Slideouts  1
Power Retractable Slideout  Yes
Number of Awnings  1
Power Retractable Awning  No
Screened Room  No
Leveling Jack Type  Front Manual / Rear Manual
Sky Light  Standard
Roof Vents  Standard
Propane Tank Cover  Standard
Pass-Thru Storage  Standard
hide Instrumentation:
Fresh Water Holding Tank Gauge  Standard
Gray Water Holding Tank Gauge  Standard
Black Water Holding Tank Gauge  Standard
Water Pump Power Display  Standard
hide Identification:
Generic Type (Primary)  Travel Trailer
Manufacturer Country  USA
Introduction Year  2009
Regional Availability  All Regions
Display Name  Compass™ 721FBS
hide Electrical:
Battery Power Converter  Yes
Air Conditioning Prewiring  Yes
Cable Prewiring  Yes
Phone Prewiring  No
Heat Prewiring  Yes
TV Antenna Prewiring  Yes
Satellite Prewiring  No
Washer / Dryer Prewiring  No
Exterior Plugs  Standard
Ground Fault Plugs  Standard
hide Heater & Cooler:
Air Conditioning Type  Automatic
Heater Type  Automatic
Water Heater Tank Capacity (g/l)  6 / 22.7
Water Heater Pump Power Mode  Electrical / Propane
Water Heater Tank Bypass  Yes
hide Other:
Smoke Detector  Standard
Carbon Monoxide Detector  Standard
Propane Alarm  Standard
Emergency Exit (s)  Standard
hide Interior:
Kitchen / Living Area Flooring Type  Vinyl
Kitchen Table Configuration  Bench Seats
Kitchen Location  Center
Living Area Location  Center
Number Of Oven Burners  3
Overhead Fan  Yes
Layout  Stove
Microwave Oven  Standard
Refrigerator Size  Mid-Size
Refrigerator Power Mode  Electric / Propane
Sink Cover / Cutting Boards  Standard
Max Sleeping Count  5
Number Of Bunk Beds  0
Number Of Double Beds  0
Number Of Full Size Beds  0
Number Of Queen Size Beds  1
Number Of King Size Beds  0
Number Of Convertible / Sofa Beds  1
Master Bedroom Flooring Type  Vinyl
Master Bedroom Door Style  Curtain
Full Size Master Bedroom Closet  No
Master Bedroom Mirror Doors  No
Master Bedroom Shades / Curtains  Yes
Master Bedroom Location  Front
Bed Spreads  Standard
Number Of Bathrooms  1
Bathroom Flooring Type  Vinyl
Bathroom Location  Rear
Toilet Type  Plastic
Door Type  Curtain
Bathtub  Standard
Bathroom Sink  Standard
Bathroom Medicine Cabinet  Standard
Bathroom Mirror  Standard
Bathroom Vent / Fan System  Standard
Sink / Faucet  Standard
hide Audio & Communication:
Satellite  No
Number Of Radios  1
Speaker Location (s)  Interior / Exterior
Surround Sound  No
Number Of Discs  1
Retractable Roof Antenna  Standard
hide Lights:
Exterior Flood Lights  Standard
hide Paint & Finish:
Paint  Standard
Wallpaper  Yes
Interior Wood Finish  Yes
Curtains / Shades  Standard
hide Warranty:
Structure Warranty (Months)  12
Basic Warranty (Months)  12
