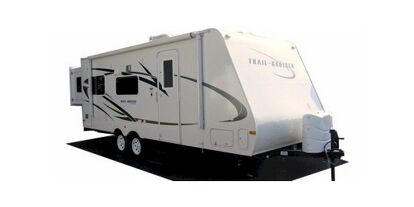

2009 R-Vision Trail-Cruiser TC23SBC
2009 R-Vision Trail-Cruiser TC23SBC pictures, prices, information, and specifications.
Type
Travel Trailer
Rating
#6 of 83
R-Vision Travel Trailer RV's
1
Year
2009
Parent Company
R-Vision Inc.
Generic Type (Primary)
Travel Trailer
Make
R-Vision
Display Name
Trail-Cruiser TC23SBC
Manufacturer Country
USA
Regional Availability
All Regions
Price
Standard
Basic Warranty (Months)
12
Structure Warranty (Months)
24
Roof Warranty (Years)
12
Dimensions
Standard
Weight
Standard
Capacities
Standard
Holding Tanks
Standard
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Number Of Propane Tanks
2
Length (in/mm/ft/m)
306 / 7800 / 25.5 / 7.8
Width (in/mm)
96 / 2438.4
Dry Weight (lbs/kg)
3792 / 1720.1
Payload Capacity (lbs/kgs)
2140 / 970.7
GVWR (lbs)
5932
Hitch Weight (lbs)
332
Total Fresh Water Tank Capacity (gal/l)
30 / 113.6
Total Gray Water Tank Capacity (gal/l)
30 / 113.6
Total Black Water Tank Capacity (gal/l)
30 / 113.6
Propane Tank (s)
Standard
Total Propane Tank Capacity (gal/lbs)
14.2 / 60
Construction
Standard
Body Material
Aluminum
Sidewall Construction
Fiberglass
Number of Doors
1
Sliding Glass Door
No
Expandable Bunk
Standard
Expandable Bunk Material
Hard Shell
Awning
Standard
Number of Awnings
1
Power Retractable Awning
Yes
Screened Room
No
Leveling Jacks
Standard
Leveling Jack Type
Front Manual / Rear Manual
Sky Light
Standard
Roof Vents
Standard
Exterior Ladder
Optional
Propane Tank Cover
Standard
Exterior Shower
Standard
Exterior Grille
Optional
Pass-Thru Storage
Standard
Rear Bumper Drain Hose Carrier
Standard
Kitchen / Living Area
Standard
Kitchen / Living Area Flooring Type
Vinyl
Kitchen Table Configuration
Bench Seats
Kitchen Location
Center
Living Area Location
Center
Layout
Stove
Number Of Oven Burners
3
Overhead Fan
Yes
Microwave Oven
Optional
Refrigerator
Standard
Refrigerator Size
Mid-Size
Refrigerator Power Mode
Electric / Propane
Sink / Faucet
Standard
Sink Cover / Cutting Boards
Standard
Sofa
Standard
Number Of Sofas
1
Sofa Material
Cloth
Beds
Standard
Max Sleeping Count
7
Number Of Bunk Beds
1
Number Of Queen Size Beds
1
Number Of Convertible / Sofa Beds
2
Bed Spreads
Standard
Bathroom
Standard
Number Of Bathrooms
1
Bathroom Flooring Type
Vinyl
Bathroom Location
Center
Toilet
Standard
Toilet Type
Plastic
Shower
Standard
Door Type
Curtain
Bathtub
Standard
Bathroom Sink
Standard
Bathroom Medicine Cabinet
Standard
Bathroom Mirror
Standard
Bathroom Vent / Fan System
Standard
Power Vent Fan
Optional
Wheels
Standard
Wheels Composition
Steel
Number Of Axles
2
Tires
Standard
Rear Tire Width
205
Rear Tire Speed Rating
C
Rear Wheel Diameter
14
Spare Tire Cover
Standard
Spare Tire
Standard
Spare Tire Location
Exterior Mounted
Rear Tire (Full Spec)
205 / R14C
Brakes
Standard
Rear Brake Type
Electric Drum
Fresh Water Holding Tank Gauge
Standard
Gray Water Holding Tank Gauge
Standard
Black Water Holding Tank Gauge
Standard
Exterior Flood Lights
Standard
Hitch Lights
Optional
Battery
Standard
Battery Power Converter
Yes
Battery Converter Amps
55
Prewiring
Standard
Air Conditioning Prewiring
Yes
Cable Prewiring
Yes
Phone Prewiring
No
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Satellite Prewiring
No
Washer / Dryer Prewiring
No
Exterior Plugs
Standard
Ground Fault Plugs
Standard
Air Conditioning
Optional
Heater
Standard
Heater Type
Automatic
Water Heater Tank
Standard
Water Heater Pump Power Mode
Electrical / Propane
Water Heater Tank Bypass
Yes
Freeze Proof Insulation
Standard
Water Heater Tank Capacity (g/l)
6 / 22.7
Smoke Detector
Standard
Propane Alarm
Standard
Emergency Exit (s)
Standard
Radio
Standard
Number Of Radios
1
Satellite
No
Speakers
Standard
Surround Sound
No
CD Player
Standard
Number Of Discs
1
DVD Player
Standard
Television
Optional
Retractable Roof Antenna
Standard
Speaker Location (s)
Interior / Exterior
Paint
Standard
Metallic
No
Interior Decor
Standard
Wallpaper
Yes
Interior Wood Finish
Yes
Curtains / Shades
Standard
User Reviews
1 review
-
2009 Trail Cruiser
By dave f (I am an Owner) on Feb 18, 2010All in all a nice lightweight trailer. Don't believe the weight ratings in the brochure, mine said 3700lbs and it weighed in at 5000+lbs with gear. There's no way we carry 1300lbs of stuff! There are many standard features which should be considered in the weight rating but are considered optional. ... Remove the black plastic cover under the trailer and you will find some very poor craftsmanship. Poor fresh water tank drain hose (20ft long and does not drain unless you lower the front of trailer to the ground! Terrible engineering! The tank is in the back, put the drain back there! Also fresh water pickup hose has no rigid elbow and kinks off, Therefore no water goes to pump, again terrible! Brake wiring and tank wiring not supported. Fresh water tank not supported in the center and sags away from main supports! (c'mon guys!) They claim to have a heated underbelly but is open to elements and rodents where the dump valves are, seal up the whole thing or your wasting our time. The grey and black tanks are labelled wrong! The tank level guages are also labeled wrong! The black is grey and vice versa. A lot of wasted storage inside some cabinets. Workers should clean up their wiring and plumbing installs and remove the divider boards from inside the floor cabinets to free up some storage space. Most of the wires/plumbing just have to be secured to the back walls remove the fake partition and voila, a whole free cupboard. Another crazy thing, no easy access to the rear slide motor. Heaven help you if you should have a dead battery or bad motor and you have to bring the slide in or out! Why not put a small access door on the back of the trailer beside the motor so you can manually crank it, like the competitors do! Dinette seating is very flimsy and has to be reinforced with L brackets in the corners. Dinette seating should have drawer storage, come on lets get with the times guys! Storage cabinet needed in the bedroom slide also. VERY NICE cushions and bed foams, the best I've seen in the industry! Of all the things this is the best feature. Nice aerodynamic front propane cover is also a nice feature that sets this trailer apart from others. Although I see that 2010 models have changed--back to the traditional white tank covers--that's too bad. Needs more convenience lighting. It would be nice to have a light at the front for hooking up hitch and also in the storage bays. Front storage bay needs a door on the other side?? Whoever heard of a pass through storage bay with one door!!! This is crazy! Also the flip up lower bunk is difficult to flip up and it has no holding mechanism to keep it up -- this makes the pack and play feature useless! What about a gas strut shock to help it up and a latch. If you are handy at carpentry and plumbing you can fix all these issues like I have, but after paying so much money for this unit why should you have to. I have fixed all these anoyances and We have camped in it about 8 trips and so far no structural issues and it pulls fairly straight. For now I am happy with it, but will consider a different manufacturer for our next upgrade. This company should be careful because everyone is coming out with rear slide trailers and quality is definitely going to come into play here. Good luck with your purchase and I hope if you are considering buying one of these you check into all these issues carefully.Rating breakdown
