2010 Skyline Layton Lite 172

User Rating RVGuide.com 796 of 1014
2010 Travel Trailer RV's
Overall
Performance
Quality & Reliability
Interior
Overall Value
  • MSRP: $18,748.00
  • Financing:
  • Type: Travel Trailer
  • Insurance:

2010 Skyline Layton Lite 172

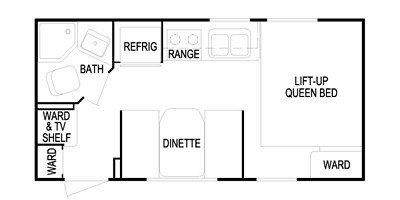

2010 Skyline Layton Lite 172 Floorplan View Floorplan

2010 Skyline Layton Lite 172 Specifications

hide Technical Specifications:
Length (ft/m)  20.08 / 6.1
Width (in/mm)  96 / 2438.4
Height (in/mm)  119 / 3022.6
Interior Height (in/mm)  76 / 1930.4
Length (ft/ft)  20
Length (ft/in)  1
Dry Weight (lbs/kg)  3100 / 1406.2
Payload Capacity (lbs/kgs)  1550 / 703.1
GVWR (lbs/kgs)  4800 / 2177.3
Hitch Weight (lbs/kgs)  325 / 147.4
Capacities  Standard
Number Of Fresh Water Holding Tanks  1
Total Fresh Water Tank Capacity (gal/l)  54 / 204.4
Number Of Gray Water Holding Tanks  1
Total Gray Water Tank Capacity (gal/l)  31 / 117.3
Number Of Black Water Holding Tanks  1
Total Black Water Tank Capacity (gal/l)  31 / 117.3
Propane Tank (s)  Standard
Number Of Propane Tanks  2
Total Propane Tank Capacity (gal/lbs)  14.2 / 60
hide Exterior:
Body Material  Wood
Sidewall Construction  Sheet Metal
Number of Doors  1
Sliding Glass Door  No
Number of Slideouts  0
Roof Vents  Standard
Propane Tank Cover  Standard
Pass-Thru Storage  Standard
Rear Bumper Drain Hose Carrier  Standard
hide Identification:
Generic Type (Primary)  Travel Trailer
Manufacturer Country  USA
Introduction Year  2009
Regional Availability  West
Display Name  Layton Lite 172
hide Interior:
Kitchen / Living Area Flooring Type  Vinyl
Kitchen Table Configuration  Bench Seats
Kitchen Location  Center
Living Area Location  Center
Layout  Oven / Stove
hide Warranty:
Structure Warranty (Months)  12
Roof Warranty (Years)  12
Basic Warranty (Months)  12
