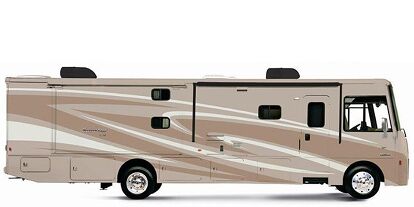

2017 Winnebago Sunstar LX 35F
2017 Winnebago Sunstar LX 35F pictures, prices, information, and specifications.
Type
Class A
Rating
#5 of 44
Winnebago Class A RV's
Year
2017
Parent Company
Winnebago Industries, Inc.
Generic Type (Primary)
Class A
Make
Winnebago
Display Name
Sunstar LX 35F
Manufacturer Country
USA
Introduction Year
2011
Regional Availability
All Regions
Price
Standard
Basic Warranty (Miles/Months)
15000 / 12
Structure Warranty (Months/Miles)
36 / 36000
Roof Warranty (Years)
10
Chassis Warranty (Months/Miles)
36 / 36000
Powertrain Warranty (Months/Miles)
60 / 60000
Engine
Standard
Engine Brand Name
Triton®
Chassis Brand
Ford
Engine Type
V10
Chassis Model
F-Series Super Duty
Cylinders
10
Horsepower RPM
4000
Torque RPM
3000
Turbocharged
No
Supercharged
No
Fuel Type
Gas
Fuel Requirements
Regular
Carburetion
Standard
Carburetion Type
Fuel Injected
Horsepower (bhp)
320
Torque (Nm)
623.7
Displacement (l)
6.8
Transmission
Standard
Transmission Brand
TorqShift
Transmission Type
Automatic
Number Of Speeds
6
Overdrive
Yes
Driveline Type
4X2
Dimensions
Standard
Weight
Standard
Capacities
Standard
Holding Tanks
Standard
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
2
Number Of Propane Tanks
1
Length (in/mm/ft/m)
425 / 10800 / 35.42 / 10.8
Width (in/mm)
101.5 / 2578.1
Height (in/mm)
149 / 3784.6
Interior Height (in/mm)
80 / 2032
Wheelbase (in/mm)
228 / 5791.2
Towing Capacity (lbs/kgs)
5000 / 2268
GVWR (lbs)
22000
Fuel Capacity (gal/l)
80 / 302
Total Fresh Water Tank Capacity (gal/l)
74 / 280.1
Total Gray Water Tank Capacity (gal/l)
51 / 193.1
Total Black Water Tank Capacity (gal/l)
62 / 234.7
Propane Tank (s)
Standard
Total Propane Tank Capacity (gal/lbs)
18 / 76.3
Construction
Standard
Body Material
Aluminum
Sidewall Construction
Fiberglass
Number of Doors
1
Sliding Glass Door
No
Slideouts
Standard
Number of Slideouts
2
Power Retractable Slideout
Yes
Awning
Standard
Number of Awnings
1
Power Retractable Awning
Yes
Screened Room
No
Leveling Jacks
Standard
Leveling Jack Type
Front Power / Rear Power
Power Retractable Entry Steps
Standard
Sky Light
Standard
Roof Vents
Standard
Exterior Ladder
Standard
Exterior Shower
Standard
Pass-Thru Storage
Standard
Exterior Wheel Skirts
Standard
Awning Length (ft/m)
16 / 4.9
Kitchen / Living Area
Standard
Kitchen / Living Area Flooring Type
Vinyl
Kitchen Table Configuration
Bench Seats
Kitchen Location
Front
Living Area Location
Center
Layout
Stove
Number Of Oven Burners
3
Overhead Fan
Yes
Microwave Oven
Standard
Refrigerator
Standard
Refrigerator Size
Full-Size
Refrigerator Power Mode
Electric / Propane
Washer / Dryer
Optional
Sink / Faucet
Standard
Sofa
Standard
Number Of Sofas
1
Sofa Material
Vinyl
Fireplace
Standard
Beds
Standard
Max Sleeping Count
7
Number Of Queen Size Beds
1
Number Of Convertible / Sofa Beds
2
Master Bedroom
Standard
Master Bedroom Flooring Type
Carpet
Master Bedroom Door Style
Full Sliding Door
Full Size Master Bedroom Closet
Yes
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Center
Bunkhouse
No
Bed Spreads
Standard
Bathroom
Standard
Number Of Bathrooms
2
Bathroom Flooring Type
Vinyl
Bathroom Location
Rear / Center
Toilet
Standard
Toilet Type
Porcelain
Shower
Standard
Door Type
Plastic / Glass
Bathroom Sink
Standard
Bathroom Medicine Cabinet
Standard
Bathroom Mirror
Standard
Bathroom Vent / Fan System
Standard
Power Vent Fan
Standard
Wheels
Standard
Wheels Composition
Aluminum
Number Of Axles
1
Tires
Standard
Front Tire Width
235
Front Tire Aspect Ratio
80
Front Tire Speed Rating
G
Front Wheel Diameter
22.5
Rear Tire Width
235
Rear Tire Aspect Ratio
80
Rear Tire Speed Rating
G
Rear Wheel Diameter
22.5
Front Wheel Width (in)
7.5
Rear Wheel Width (in)
7.5
Front Tire (Full Spec)
235/80R 22.5G
Rear Tire (Full Spec)
235/80R 22.5G
Brakes
Standard
Front Brake Type
Hydraulic Disc
Rear Brake Type
Hydraulic Disc
Anti-Lock Brakes
Standard
Rear Hitch
Standard
Rear Hitch Type
Receiver
Tongue Weight (lbs/kgs)
500 / 226.8
Seat Type
Bucket
Seat Material
Leather
Reclining Seats
Yes
Swivel Seats
Yes
Seat Armrests
Yes
Seat Specifications
Standard
Number Of Seats
2
Number Of Rows
1
Propane Tank Gauge
Standard
Fresh Water Holding Tank Gauge
Standard
Gray Water Holding Tank Gauge
Standard
Black Water Holding Tank Gauge
Standard
Water Pump Power Display
Standard
Voltage Meter
Standard
Exterior Flood Lights
Standard
Battery
Standard
Battery Power Converter
Yes
Battery Converter Amps
55
Prewiring
Standard
Air Conditioning Prewiring
Yes
Cable Prewiring
Yes
Phone Prewiring
Yes
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Satellite Prewiring
Yes
Washer / Dryer Prewiring
Yes
Exterior Plugs
Standard
Ground Fault Plugs
Standard
Generator
Standard
Air Conditioning
Standard
Air Conditioning Type
Automatic
Heater
Standard
Heater Type
Automatic
Water Heater Tank
Standard
Water Heater Pump Power Mode
Electrical / Propane
Water Heater Tank Bypass
Yes
Freeze Proof Insulation
Standard
Water Heater Tank Capacity (g/l)
10 / 37.9
Power Windows
Standard
Rear Video Backup Camera
Standard
Cruise Control
Standard
Smoke Detector
Standard
Carbon Monoxide Detector
Standard
Propane Alarm
Standard
Number Of Emergency Exits
1
Emergency Exit (s)
Standard
Radio
Standard
Number Of Radios
1
Satellite
No
Speakers
Standard
Surround Sound
No
CD Player
Standard
Number Of Discs
1
Exterior Entertainment System
Optional
DVD Player
Standard
Television
Standard
Number Of Televisions
1
Retractable Roof Antenna
Standard
Speaker Location (s)
Interior
Paint
Standard
Interior Decor
Standard
Wallpaper
Yes
Interior Wood Finish
Yes
Curtains / Shades
Standard
User Reviews
2 reviews
-
defective unit, re per pious parts, in the shop more then on vacation
By Dorothy Knight (I am an Owner)2021 still more issues to add to the list since this letter, but sick of writing about it nothing gets done Do Not Buy This RV and customer service ha there is non at WinnebagoWinnebago Industries - Do Not Buy Winnebago Sun star ReadDec 13, 2017 #1147554 1211 views 10 commentsReview about: 2017 Winnebago ... Industries Sun star Rv . Lack of professional employees. Update by user Jul 02, 2018 2017 WINNEABAGO SUNSTAR REPAIR LIST (KNIGHTS) 516 724 0737 SO MUCH LOST VACATION TIME Winnebago Industries Service Administration 7/2/2018 NYS.DOT PASSANGER SIDE HOOD LOCK BROKE AGAIN ( VERY DANGEROUS) BIG ISSUE: (AGAIN) LANDING GEARS AND DASH SWITCH, MAL FUNCITION AGAIN ONLY LEFT REAR WENT DOWN AT CAMP SITE TRIED SEVERAL TIMES BEFORE ALL 4 CAME DOWN ALL THE WAY BACK FROM MO IN DASH SWITCH KEEP GOING OFF WITH LIGHT ON (JACKS DOWN) WHEN NOT PULL OVER 25 TIMES TO LOOK AT VERY VERY AGGERVATING THAT BEEPING (MUST BE FULLY REPLACED) OBVIOUS SHORT SOMEWHERE FRONT AC / KITCHEN OUTSIDE 82 INSIDE 95 DOES NOT WORK CORRECLTY KITCHEN AWANING FELL OFF NEEDS TO BE FIXED BED ROOM SLIDE OUT HAD A HARD TIME BRINGING IT IN SOUNDS LIKE THE MOTOR IS STRAINING A LOT OF METAL SHAVINGS ON THE FLOOR LIVING ROOM SLIDE OUT HAD A HARD TIME BRINGING IT IN SOUNDS LIKE THE MOTOR IS STRAINING A LOT OF METAL SHAVINGS ON THE FLOOR HAVE VIDEO WILL POST back up camera (huge delay) turns on (after back up) very Dangerous... Update by user Jun 14, 2018 another lost vacation both ac in this Winnebago lemon stop working only used on two of 5 vacations and now the driver’s side slide out is falling apart again all metal shavings on floor that I was advised last repair request to be normal I think the motor is falling apart it grinds as it very slowly retracts in we pushed it as we tried to get it to go in UNBELIVABLE Do Not but Winnebago sun star it is defective I have met 4-other people with the Same Issues for you who are lucky to have bought one that is working well whoo hoo to you Update by user Jan 15, 2018 Winnebago will not replace this new RV, they are have a local company repair it, do not even think I will get a brand new roof, I will trade in as soon as I can, ny state lemon law I have to have the same problem 3-times not repairable for them to take it back before I reach 18K this lemon has 13K on it, will be a year at the end of May I have this pretty looking garbage Buyers beware Do Not Buy the Sun star and Winnebago are very Unprofessional you will not want the stress of dealing with them D Knight Hicksville NY Original review posted by user Dec 13, 2017 To: Angela Gerdes Customer Care Specialist Winnebago Ind 12/13/17 650 West Crystal Lake Rd Forest City IA 50436 Ceo Michael J Happe RE: 2017 Winnebago Sun star high cost Lemmon date of purchase 4/26/17 THE ICING ON THE CAKE the roof needs to be replaced we have had for over 40 years used and new Rv nothing with these issues. Area- Roof looks burnt with a crack (a fire?) black soot ?- or primer? To cover a Roof crack?? (took pictures) behind Lrm slide out noticed after pick up at rv service co AFTER vacation (stayed in hotels) have receipts **** Needs roof replacement*** Area Septic overflow, sewer leak area compartment rug needs to be replaced bacteria Kitchen IMPLOTED window needs to be replaced Entry door keeps coming loose hard to close may be frame need to be replaced? (rattles loudly) rear storage Compartments retain water (weather strips?) issue? driver side and passenger side weather stripping his falling off leaving jacks front does not work from time to time on (sold flat surface) fireplace now rattles very loudly we do not know where to tighten living room rear awning fell do not see hinges, we leave living rm shades down in this area kitchen sink faucet needs a washer has a drip camera has a delay comes on after the lane has been changed (dangerous) onan generator serviced after every trip (still stalls out after hitting a bump) area driver side lower compartment loose hard to close hinge issues again drivers side slid out falling apart bolts falling out (repaired) still questionable please check both slide out for they make grinding noise and yes they are clear of any debris on the floors front heater works intermittently (thermostat?) issue? Windshield weather stripping (Lace) pealing and has no protection on the bottom from rocks Add the 2-issues on this 2017 Winnebago Sun star Rv Needs to be Replaced! no Questions about it. picture of the Hood issue with the hood stop falling off is attached Hood cannot be locked dangerous can only lock now on one side. pictures of a crack on the roof with (Primer over it ) with primer runs (hidden issue) Reason of review: Damaged or defective. Preferred solution: full replacement. Monetary Loss: $155000. want unit replacedRead More -
Nothing but problems
By Dan (I am an Owner)Owned for two years - first trip fuel pump on the generator fails and had to be replaced. then the engine hood bracket fell off while traveling down the Interstate. This is fairly big piece of metal and could have seriously hurt the person driving behind us. Went to trade in the coach and the slide ... motor failed causing me to accept less on trade-in. This is a coach that is only two years old and has less than 10,000 miles on it. Previously owned a 2010 Sightseer 33c for 7 years with no issues. Build quality at Winnebago has certainly gone downhill. I'm glad I no longer own the coach and will never be a Winnebago owner again.Read More
