2009 Coachmen Shasta Aireflyte 12

User Rating RVGuide.com 972 of 979
2009 Travel Trailer RV's
Overall
Performance
Quality & Reliability
Interior
Overall Value
  • MSRP: $TBA
  • Financing:
  • Type: Travel Trailer
  • Insurance:

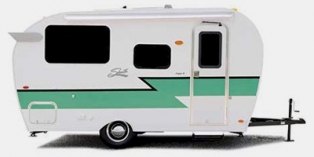

2009 Coachmen Shasta Aireflyte 12

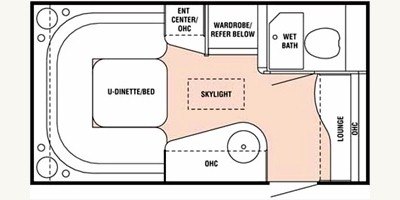

2009 Coachmen Shasta Aireflyte 12 Floorplan View Floorplan

2009 Coachmen Shasta Aireflyte 12 Specifications

hide Technical Specifications:
Length (ft/m)  17.33 / 5.3
Width (in/mm)  93 / 2362.2
Height (in/mm)  100 / 2540
Interior Height (in/mm)  77 / 1955.8
Length (ft/ft)  17
Length (ft/in)  4
Dry Weight (lbs/kg)  2482 / 1125.8
Payload Capacity (lbs/kgs)  1023 / 464
Hitch Weight (lbs/kgs)  403 / 182.8
Storage Capacity (cuft/gal/l)  9 / 57.9 / 254.9
Number Of Fresh Water Holding Tanks  1
Total Fresh Water Tank Capacity (gal/l)  36 / 136.3
Number Of Gray Water Holding Tanks  1
Total Gray Water Tank Capacity (gal/l)  32 / 121.1
Number Of Black Water Holding Tanks  1
Total Black Water Tank Capacity (gal/l)  11 / 41.6
Number Of Propane Tanks  0
hide Exterior:
Sidewall Construction  Fiberglass
Number of Doors  1
Sliding Glass Door  No
Number of Slideouts  0
Leveling Jack Type  Rear Manual
Sky Light  Standard
Roof Vents  Standard
Pass-Thru Storage  Standard
hide Identification:
Generic Type (Primary)  Travel Trailer
Manufacturer Country  USA
Introduction Year  2009
Regional Availability  All Regions
Display Name  Shasta Aireflyte 12
hide Interior:
Kitchen / Living Area Flooring Type  Vinyl
Kitchen Table Configuration  Bench Seats
Kitchen Location  Rear
Living Area Location  Front
Layout  Stove
hide Warranty:
Structure Warranty (Months)  12
Roof Warranty (Years)  12
Basic Warranty (Months)  12
