2010 Four Winds Serrano 31V

User Rating RVGuide.com 16 of 227
2010 Class A RV's
Overall
Performance
Quality & Reliability
Interior
Overall Value
  • MSRP: $147,469.00
  • Financing:
  • Type: Class A
  • Insurance:

2010 Four Winds Serrano 31V

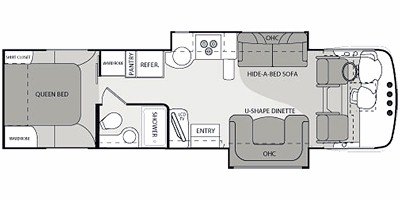

2010 Four Winds Serrano 31V Floorplan View Floorplan

2010 Four Winds Serrano 31V Specifications

hide Engine:
Engine Brand Name  MaxxForce®
Engine Type  V8
Cylinders  8
Horsepower (bhp/kW)  230 / 171.6
Horsepower RPM  2600
Torque (Ft Lbs/Nm)  620 / 840.6
Torque RPM  1400
Fuel Requirements  Regular
Fuel Type  Diesel
Turbocharged  Yes
Supercharged  No
Chassis Model  W Series
Chassis Brand  Workhorse
Displacement (l)  6.4
Carburetion Type  Fuel Injected
hide Transmission:
Transmission Type  Automatic
Number Of Speeds  6
Overdrive  Yes
Transmission Brand  Allison
hide Wheels & Tires:
Wheels Composition  Steel
Number Of Axles  1
Front Tire (Full Spec)  245/70R 19.5
Rear Tire (Full Spec)  245/70R 19.5
hide Brakes:
Front Brake Type  Hydraulic Disc
Rear Brake Type  Hydraulic Disc
Anti-Lock Brakes  Standard
hide Technical Specifications:
Length (ft/m)  32.83 / 10
Width (in/mm)  96 / 2438.4
Height (in/mm)  137 / 3479.8
Wheelbase (in/mm)  200 / 5080
Interior Height (in/mm)  80 / 2032
Length (ft/ft)  32
Length (ft/in)  10
Towing Capacity (lbs/kgs)  5000 / 2268
GVWR (lbs/kgs)  20500 / 9298.8
Fuel Capacity (gal/l)  40 / 151.4
Number Of Fresh Water Holding Tanks  1
Total Fresh Water Tank Capacity (gal/l)  50 / 189.3
Number Of Gray Water Holding Tanks  1
Total Gray Water Tank Capacity (gal/l)  56.7 / 214.6
Number Of Black Water Holding Tanks  1
Total Black Water Tank Capacity (gal/l)  36.5 / 138.2
Propane Tank (s)  Standard
Number Of Propane Tanks  1
Total Propane Tank Capacity (gal/lbs)  22.7 / 96.4
hide Seats:
Seat Type  Bucket
Seat Material  Leather
Reclining Seats  Yes
Swivel Seats  No
Seat Armrests  Yes
Number Of Seats  2
Number Of Rows  1
hide Exterior:
Body Material  Aluminum
Sidewall Construction  Fiberglass
Number of Doors  1
Sliding Glass Door  No
Number of Slideouts  2
Power Retractable Slideout  Yes
Number of Awnings  1
Awning Length (ft/m)  17 / 5.2
Power Retractable Awning  No
Screened Room  No
Leveling Jack Type  Front Power / Rear Power
Power Retractable Entry Steps  Standard
Sky Light  Standard
Roof Vents  Standard
Exterior Ladder  Standard
Exterior Shower  Standard
hide Instrumentation:
Fresh Water Holding Tank Gauge  Standard
Gray Water Holding Tank Gauge  Standard
Black Water Holding Tank Gauge  Standard
Trailer Level Gauge  Standard
Propane Tank Gauge  Standard
hide Identification:
Generic Type (Primary)  Class A
Manufacturer Country  USA
Introduction Year  2010
Regional Availability  All Regions
Display Name  Serrano 31V
hide Interior:
Kitchen / Living Area Flooring Type  Carpet / Vinyl
Kitchen Table Configuration  Bench Seats
Kitchen Location  Center
Living Area Location  Front
Number Of Oven Burners  2
Overhead Fan  Yes
Layout  Oven / Stove
Microwave Oven  Standard
Refrigerator Size  Mid-Size
Refrigerator Power Mode  Electric / Propane
Sink Cover / Cutting Boards  Standard
Number Of Sofas  1
Sofa Material  Leather
Max Sleeping Count  6
Number Of Bunk Beds  0
Number Of Double Beds  0
Number Of Full Size Beds  0
Number Of Queen Size Beds  1
Number Of King Size Beds  0
Number Of Convertible / Sofa Beds  2
Master Bedroom Flooring Type  Carpet
Master Bedroom Door Style  Full Sliding Door
Full Size Master Bedroom Closet  No
Master Bedroom Mirror Doors  No
Master Bedroom Shades / Curtains  Yes
Master Bedroom Location  Rear
Bed Spreads  Standard
Number Of Bathrooms  1
Bathroom Flooring Type  Vinyl
Bathroom Location  Center
Toilet Type  Porcelain
Door Type  Plastic / Glass
Bathroom Sink  Standard
Bathroom Medicine Cabinet  Standard
Bathroom Mirror  Standard
Bathroom Vent / Fan System  Standard
Sink / Faucet  Standard
hide Electrical:
Battery Power Converter  Yes
Air Conditioning Prewiring  Yes
Cable Prewiring  Yes
Phone Prewiring  Yes
Heat Prewiring  Yes
TV Antenna Prewiring  Yes
Satellite Prewiring  Yes
Washer / Dryer Prewiring  No
Exterior Plugs  Standard
Ground Fault Plugs  Standard
Generator  Standard
hide Other:
Smoke Detector  Standard
Carbon Monoxide Detector  Standard
Propane Alarm  Standard
Emergency Exit (s)  Standard
Number Of Emergency Exits  1
hide Towing & Hauling:
Rear Hitch Type  Receiver
hide Heater & Cooler:
Air Conditioning Type  Automatic
Heater Type  Automatic
Water Heater Tank Capacity (g/l)  6 / 22.7
Water Heater Pump Power Mode  Electrical / Propane
Water Heater Tank Bypass  Yes
Freeze Proof Insulation  Standard
hide Audio & Communication:
Satellite  No
Number Of Radios  1
Speaker Location (s)  Interior
Number Of Discs  1
Number Of Televisions  1
Retractable Roof Antenna  Standard
hide Lights:
Exterior Flood Lights  Standard
hide Convenience:
Cruise Control  Standard
hide Paint & Finish:
Paint  Standard
Wallpaper  Yes
Interior Wood Finish  Yes
Curtains / Shades  Standard
hide Warranty:
Basic Warranty (Months)  12
Structure Warranty (Months/Miles)  36 / 45000
Powertrain Warranty (Months/Miles)  36 / 150000
Chassis Warranty (Months/Miles)  36 / 36000
hide Drive Line:
Driveline Type  4X2
