2014 Roadtrek Ranger RT

User Rating RVGuide.com 5 of 16
2014 Class B RV's
Overall
Performance
Quality & Reliability
Interior
Overall Value
  • MSRP: $TBA
  • Financing:
  • Type: Class B
  • Insurance:

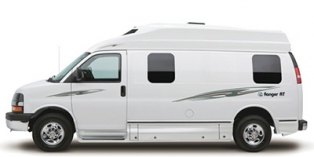

2014 Roadtrek Ranger RT

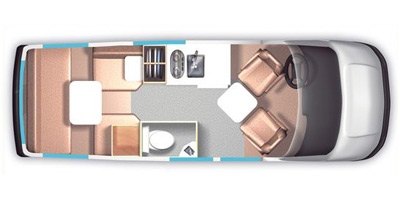

2014 Roadtrek Ranger RT Floorplan View Floorplan

2014 Roadtrek Ranger RT Specifications

hide Engine:
Engine Brand Name  Vortec®
Engine Type  V8
Cylinders  8
Horsepower (bhp/kW)  285 / 213
Horsepower RPM  5200
Torque (Ft Lbs/Nm)  295 / 398
Torque RPM  4000
Fuel Requirements  Regular
Fuel Type  Gas
Turbocharged  No
Supercharged  No
Chassis Model  Express 2500
Chassis Brand  Chevrolet
Displacement (l)  4.8
Carburetion Type  Fuel Injected
hide Transmission:
Transmission Type  Automatic
Number Of Speeds  6
Overdrive  Yes
hide Wheels & Tires:
Wheels Composition  Steel
Number Of Axles  1
Front Tire (Full Spec)  LT245/75 R16E
Rear Tire (Full Spec)  LT245/75 R16E
Spare Tire Location  Exterior Mounted
hide Brakes:
Front Brake Type  Hydraulic Disc
Rear Brake Type  Hydraulic Disc
Anti-Lock Brakes  Standard
hide Technical Specifications:
Length (ft/m)  20.42 / 6.2
Width (in/mm)  84 / 2130
Height (in/mm)  105 / 2660
Wheelbase (in/mm)  155 / 3940
Interior Height (in/mm)  73 / 1855
Length (ft/ft)  20
Length (ft/in)  5
Payload Capacity (lbs/kgs)  1700 / 750
Towing Capacity (lbs/kgs)  5600 / 2550
GVWR (lbs/kgs)  13000 / 5897
Fuel Capacity (gal/l)  31 / 117
Storage Capacity (cuft/gal/l)  62 / 397.2 / 1750
Number Of Fresh Water Holding Tanks  1
Total Fresh Water Tank Capacity (gal/l)  18 / 65
Number Of Gray Water Holding Tanks  1
Total Gray Water Tank Capacity (gal/l)  23 / 85
Number Of Black Water Holding Tanks  1
Total Black Water Tank Capacity (gal/l)  10 / 40
hide Seats:
Seat Type  Bucket
Seat Material  Cloth
Power Adjustable Seat  No
Reclining Seats  Yes
Swivel Seats  Yes
Seat Armrests  Yes
Number Of Seats  2
Number Of Rows  1
hide Exterior:
Construction  Standard
Number of Doors  1
Sliding Glass Door  No
Number of Slideouts  0
Power Retractable Slideout  No
Roof Vents  Standard
Battery Cover  Standard
hide Instrumentation:
Voltage Meter  Standard
Fresh Water Holding Tank Gauge  Standard
Gray Water Holding Tank Gauge  Standard
Black Water Holding Tank Gauge  Standard
Water Pump Power Display  Standard
hide Identification:
Generic Type (Primary)  Class B
Manufacturer Country  USA
Introduction Year  2013
Regional Availability  All Regions
Display Name  Ranger RT
hide Interior:
Kitchen / Living Area Flooring Type  Vinyl
Kitchen Table Configuration  Pedestal Table
Kitchen Location  Center
Living Area Location  Rear
Number Of Oven Burners  2
Overhead Fan  No
Layout  Stove
Microwave Oven  Standard
Refrigerator Size  Compact
Refrigerator Power Mode  Electric
Number Of Sofas  1
Sofa Material  Cloth
Number Of Recliner / Rockers  0
Max Sleeping Count  2
Number Of Bunk Beds  0
Number Of Double Beds  0
Number Of Full Size Beds  0
Number Of Queen Size Beds  0
Number Of King Size Beds  0
Number Of Convertible / Sofa Beds  1
Bunkhouse  No
Heated  No
Number Of Bathrooms  1
Bathroom Flooring Type  Vinyl
Bathroom Location  Center
Toilet Type  Plastic
Door Type  Curtain
Bathroom Sink  Standard
Sink / Faucet  Standard
Power Vent Fan  Standard
hide Electrical:
Battery Power Converter  Yes
Battery Converter Amps  45
Air Conditioning Prewiring  Yes
Cable Prewiring  Yes
Phone Prewiring  No
Heat Prewiring  Yes
TV Antenna Prewiring  Yes
Satellite Prewiring  No
Washer / Dryer Prewiring  No
Exterior Plugs  Standard
Ground Fault Plugs  Standard
hide Other:
Security Alarm  Standard
Smoke Detector  Standard
Carbon Monoxide Detector  Standard
Propane Alarm  Standard
Emergency Exit (s)  Standard
hide Towing & Hauling:
Size (in/cm)  2 / 5.1
Tongue Weight (lbs/kgs)  1000 / 450
Rear Hitch Type  Receiver
hide Heater & Cooler:
Air Conditioning Type  Automatic
Water Heater Tank Capacity (g/l)  2.5 / 9
Water Heater Pump Power Mode  Electrical
Water Heater Tank Bypass  No
hide Drive Line:
Driveline Type  4X2
hide Convenience:
Cruise Control  Standard
Power Windows  Standard
hide Paint & Finish:
Paint  Standard
Wallpaper  No
Interior Wood Finish  Yes
Curtains / Shades  Standard
hide Audio & Communication:
Satellite  No
Number Of Radios  1
Speaker Location (s)  Interior
Surround Sound  No
Number Of Discs  1
DVD Player  Standard
Retractable Roof Antenna  Standard
hide Warranty:
Basic Warranty (Months)  60
Structure Warranty (Months/Miles)  60 / 0
Roof Warranty (Years)  5
Powertrain Warranty (Months/Miles)  60 / 100000
Chassis Warranty (Months/Miles)  36 / 36000
