2010 TrailManor TrailMini 18L

User Rating RVGuide.com 30 of 87
2010 Expandable Trailer RV's
Overall
Performance
Quality & Reliability
Interior
Overall Value
  • MSRP: $23,197.00
  • Financing:
  • Type: Expandable Trailer
  • Insurance:

2010 TrailManor TrailMini 18L

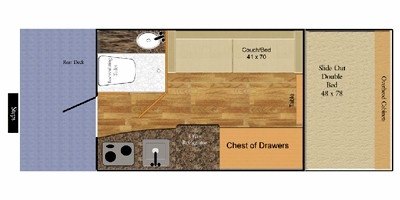

2010 TrailManor TrailMini 18L Floorplan View Floorplan

2010 TrailManor TrailMini 18L Specifications

hide Wheels & Tires:
Wheels Composition  Steel
Number Of Axles  1
Rear Tire (Full Spec)  215/75R 14
Spare Tire Location  Exterior Mounted
hide Brakes:
Rear Brake Type  Electric Drum
hide Technical Specifications:
Length (ft/m)  18.5 / 5.6
Width (in/mm)  87 / 2209.8
Height (closed) (in/closed) (ft/closed) (mm/closed) (m)  64 / 5.3 / 1625.6 / 1.6
Length (ft/ft)  18
Length (ft/in)  6
Dry Weight (lbs/kg)  1850 / 839.2
Hitch Weight (lbs/kgs)  260 / 117.9
Capacities  Standard
Number Of Fresh Water Holding Tanks  1
Total Fresh Water Tank Capacity (gal/l)  20 / 75.7
Number Of Gray Water Holding Tanks  1
Total Gray Water Tank Capacity (gal/l)  30 / 113.6
Number Of Black Water Holding Tanks  0
Total Black Water Tank Capacity (gal/l)  0 / 0
Propane Tank (s)  Standard
Number Of Propane Tanks  1
Total Propane Tank Capacity (gal/lbs)  4.7 / 20
hide Exterior:
Body Material  Aluminum
Sidewall Construction  Fiberglass
Number of Doors  1
Number of Slideouts  0
Expandable Bunk Material  Hard Shell
Leveling Jack Type  Front Manual / Rear Manual
Roof Vents  Standard
hide Instrumentation:
Fresh Water Holding Tank Gauge  Standard
Gray Water Holding Tank Gauge  Standard
Black Water Holding Tank Gauge  Standard
hide Identification:
Generic Type (Primary)  Expandable Trailer
Manufacturer Country  USA
Introduction Year  2010
Regional Availability  All Regions
Display Name  TrailMini 18L
hide Heater & Cooler:
Heater Type  Automatic
Water Heater Tank Capacity (g/l)  6 / 22.7
Water Heater Pump Power Mode  Electrical / Propane
Water Heater Tank Bypass  Yes
hide Other:
Smoke Detector  Standard
Carbon Monoxide Detector  Standard
Propane Alarm  Standard
Emergency Exit (s)  Standard
hide Electrical:
Battery Power Converter  Yes
Battery Converter Amps  30
Air Conditioning Prewiring  Yes
Cable Prewiring  Yes
Heat Prewiring  Yes
Satellite Prewiring  Yes
Washer / Dryer Prewiring  No
Exterior Plugs  Standard
Ground Fault Plugs  Standard
hide Paint & Finish:
Paint  Standard
Wallpaper  Yes
Interior Wood Finish  Yes
Curtains / Shades  Standard
hide Lights:
Exterior Flood Lights  Standard
hide Warranty:
Structure Warranty (Months)  12
Basic Warranty (Months)  12
hide Interior:
Kitchen / Living Area Flooring Type  Vinyl
Kitchen Table Configuration  Pedestal Table
Kitchen Location  Rear
Living Area Location  Center
Number Of Oven Burners  2
Overhead Fan  Yes
Layout  Stove
Refrigerator Size  Compact
Refrigerator Power Mode  Electric / Propane
Sink Cover / Cutting Boards  Standard
Number Of Sofas  1
Sofa Material  Cloth
Max Sleeping Count  4
Number Of Bunk Beds  0
Number Of Double Beds  1
Number Of Full Size Beds  0
Number Of Queen Size Beds  0
Number Of King Size Beds  0
Number Of Convertible / Sofa Beds  1
Number Of Bathrooms  1
Bathroom Flooring Type  Vinyl
Bathroom Location  Rear
Toilet Type  Recirculating
Door Type  Plastic / Glass
Bathroom Sink  Standard
Bathroom Vent / Fan System  Standard
Sink / Faucet  Standard
