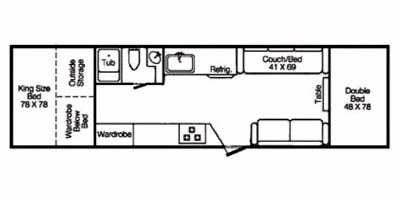

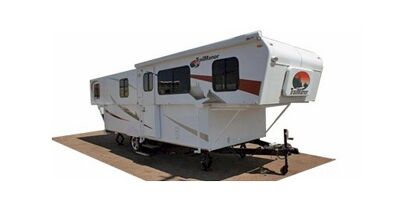

2012 TrailManor Classic Series 3124KB

2012 TrailManor Classic Series 3124KB pictures, prices, information, and specifications.
Year
2012
Parent Company
TrailManor Inc.
Generic Type (Primary)
Expandable Trailer
Make
TrailManor
Display Name
Classic Series 3124KB
Manufacturer Country
USA
Regional Availability
All Regions
Price
Standard
Basic Warranty (Months)
12
Structure Warranty (Months)
12
Dimensions
Standard
Weight
Standard
Capacities
Standard
Holding Tanks
Standard
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Propane Tanks
2
Length (in/mm/ft/m)
340 / 8600 / 28.33 / 8.6
Length (closed) ()
Height (closed) ()
Width (in/mm)
91 / 2311.4
Height (in/mm)
102.5 / 2603.5
Interior Height (in/mm)
76 / 1930.4
Dry Weight (lbs/kg)
3090 / 1401.6
Payload Capacity (lbs/kgs)
1595 / 723.5
Hitch Weight (lbs)
448
Total Fresh Water Tank Capacity (gal/l)
20 / 75.7
Total Gray Water Tank Capacity (gal/l)
30 / 113.6
Propane Tank (s)
Standard
Total Propane Tank Capacity (gal/lbs)
9.4 / 40
Construction
Standard
Body Material
Steel
Sidewall Construction
Fiberglass
Number of Doors
1
Sliding Glass Door
No
Expandable Bunk
Standard
Expandable Bunk Material
Hard Shell
Awning
Optional
Leveling Jacks
Standard
Leveling Jack Type
Front Manual / Rear Manual
Sky Light
Standard
Roof Vents
Standard
Exterior Shower
Standard
Exterior Grille
Optional
Pass-Thru Storage
Standard
Kitchen / Living Area
Standard
Kitchen / Living Area Flooring Type
Vinyl
Kitchen Table Configuration
Pedestal Table
Kitchen Location
Center
Living Area Location
Center
Layout
Oven / Stove
Number Of Oven Burners
3
Overhead Fan
Yes
Microwave Oven
Optional
Refrigerator
Standard
Refrigerator Size
Compact
Refrigerator Power Mode
Electric / Propane
Sink / Faucet
Standard
Sofa
Standard
Number Of Sofas
2
Sofa Material
Cloth
Beds
Standard
Max Sleeping Count
6
Number Of Double Beds
1
Number Of King Size Beds
1
Number Of Convertible / Sofa Beds
1
Bunkhouse
No
Bed Spreads
Standard
Bathroom
Standard
Number Of Bathrooms
1
Bathroom Flooring Type
Vinyl
Bathroom Location
Center
Toilet
Standard
Toilet Type
Recirculating
Shower
Standard
Door Type
Curtain
Bathtub
Standard
Bathroom Sink
Standard
Bathroom Mirror
Standard
Bathroom Vent / Fan System
Standard
Power Vent Fan
Standard
Wheels
Standard
Wheels Composition
Steel
Number Of Axles
1
Tires
Standard
Rear Tire Width
225
Rear Tire Aspect Ratio
75
Rear Wheel Diameter
15
Spare Tire
Standard
Spare Tire Location
Exterior Mounted
Rear Tire (Full Spec)
225/75R 15D
Brakes
Standard
Rear Brake Type
Electric Drum
Propane Tank Gauge
Standard
Fresh Water Holding Tank Gauge
Standard
Gray Water Holding Tank Gauge
Standard
Black Water Holding Tank Gauge
Standard
Exterior Flood Lights
Standard
Battery
Standard
Battery Power Converter
Yes
Battery Converter Amps
55
Prewiring
Standard
Air Conditioning Prewiring
Yes
Cable Prewiring
Yes
Phone Prewiring
Yes
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Satellite Prewiring
No
Washer / Dryer Prewiring
No
Exterior Plugs
Standard
Ground Fault Plugs
Standard
Solar Battery Charger
Optional
Air Conditioning
Optional
Heater
Standard
Heater Type
Automatic
Water Heater Tank
Standard
Water Heater Pump Power Mode
Electrical / Propane
Water Heater Tank Bypass
Yes
Water Heater Tank Capacity (g/l)
6 / 22.7
Smoke Detector
Standard
Carbon Monoxide Detector
Standard
Propane Alarm
Standard
Emergency Exit (s)
Standard
Radio
Optional
Speakers
Standard
Surround Sound
No
CD Player
Optional
DVD Player
Optional
Television
Optional
Retractable Roof Antenna
Optional
Speaker Location (s)
Interior
Paint
Standard
Metallic
No
Interior Decor
Standard
Wallpaper
Yes
Interior Wood Finish
Yes
Curtains / Shades
Standard
