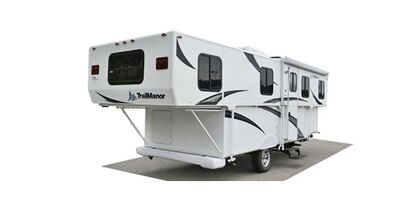

2014 TrailManor Classic Series 2417KS Sport

2014 TrailManor Classic Series 2417KS Sport pictures, prices, information, and specifications.
Year
2014
Parent Company
TrailManor, Inc.
Generic Type (Primary)
Expandable Trailer
Make
TrailManor
Display Name
Classic Series 2417KS Sport
Manufacturer Country
USA
Introduction Year
2014
Regional Availability
All Regions
Price
Standard
Basic Warranty (Months)
12
Structure Warranty (Months)
12
Dimensions
Standard
Weight
Standard
Capacities
Standard
Holding Tanks
Standard
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Propane Tanks
1
Length (in/mm/ft/m)
258 / 6600 / 21.5 / 6.6
Length (closed) ()
Height (closed) ()
Width (in/mm)
85 / 2159
Height (in/mm)
101.5 / 2578.1
Interior Height (in/mm)
76 / 1930.4
Dry Weight (lbs/kg)
2180 / 988.8
Payload Capacity (lbs/kgs)
1350 / 612.4
Hitch Weight (lbs)
305
Total Fresh Water Tank Capacity (gal/l)
40 / 151.4
Total Gray Water Tank Capacity (gal/l)
13 / 49.2
Propane Tank (s)
Standard
Total Propane Tank Capacity (gal/lbs)
4.7 / 20
Construction
Standard
Body Material
Aluminum
Sidewall Construction
Fiberglass
Number of Doors
1
Sliding Glass Door
No
Slideouts
Standard
Number of Slideouts
1
Power Retractable Slideout
Yes
Expandable Bunk
Standard
Expandable Bunk Material
Hard Shell
Awning
Optional
Leveling Jacks
Standard
Leveling Jack Type
Front Manual / Rear Manual
Roof Vents
Standard
Exterior Shower
Optional
Kitchen / Living Area
Standard
Kitchen / Living Area Flooring Type
Vinyl
Kitchen Table Configuration
None
Kitchen Location
Center
Living Area Location
Front

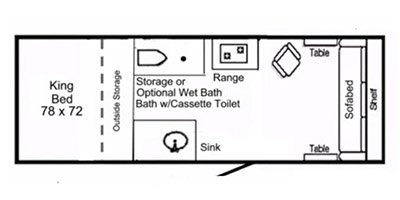

Layout
Stove
Number Of Oven Burners
2
Overhead Fan
Yes
Refrigerator
Standard
Refrigerator Size
Compact
Refrigerator Power Mode
Electric / Propane
Sink / Faucet
Standard
Sofa
Standard
Number Of Sofas
1
Sofa Material
Cloth
Recliners / Rockers
Standard
Number Of Recliner / Rockers
1
Material
Cloth
Beds
Standard
Max Sleeping Count
4
Number Of King Size Beds
1
Number Of Convertible / Sofa Beds
1
Bunkhouse
No
Bathroom
Optional
Toilet
Optional
Shower
Optional
Bathroom Sink
Optional
Bathroom Mirror
Optional
Bathroom Vent / Fan System
Optional
Power Vent Fan
Optional
Wheels
Standard
Wheels Composition
Steel
Number Of Axles
1
Tires
Standard
Rear Wheel Diameter
14
Spare Tire
Standard
Spare Tire Location
Exterior Mounted
Rear Tire (Full Spec)
14-Inch Radial Tires
Brakes
Standard
Front Brake Type
Not Applicable
Rear Brake Type
Electric Drum
Propane Tank Gauge
Standard
Fresh Water Holding Tank Gauge
Standard
Gray Water Holding Tank Gauge
Standard
Exterior Flood Lights
Standard
Battery
Standard
Battery Power Converter
Yes
Battery Converter Amps
55
Prewiring
Standard
Air Conditioning Prewiring
Yes
Phone Prewiring
Yes
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Satellite Prewiring
No
Washer / Dryer Prewiring
No
Exterior Plugs
Standard
Ground Fault Plugs
Standard
Solar Battery Charger
Optional
Air Conditioning
Optional
Heater
Standard
Heater Type
Automatic
Water Heater Tank
Standard
Water Heater Pump Power Mode
Electrical / Propane
Water Heater Tank Bypass
Yes
Water Heater Tank Capacity (g/l)
6 / 22.7
Smoke Detector
Standard
Carbon Monoxide Detector
Standard
Propane Alarm
Standard
Emergency Exit (s)
Standard
Radio
Optional
Speakers
Standard
Surround Sound
No
CD Player
Optional
Retractable Roof Antenna
Optional
Speaker Location (s)
Interior
Paint
Standard
Metallic
No
Interior Decor
Standard
Wallpaper
Yes
Interior Wood Finish
Yes
Curtains / Shades
Standard
