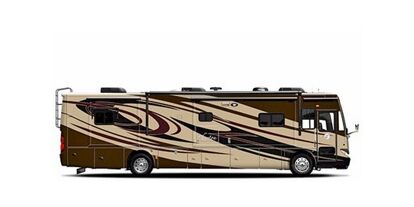

2012 Tiffin Motorhomes Phaeton 40 QKH PowerGlide
2012 Tiffin Motorhomes Phaeton 40 QKH PowerGlide pictures, prices, information, and specifications.
Type
Class A
Rating
#5 of 25
Tiffin Motorhomes Class A RV's
Engine Brand Name
Cummins
Engine Type
I6 Diesel Pusher
Cylinders
6
Horsepower (bhp/kW)
380 / 283.6
Horsepower RPM
2000
Torque (Ft Lbs/Nm)
1050 / 1423.6
Torque RPM
1400
Fuel Requirements
Regular
Fuel Type
Diesel
Turbocharged
Yes
Supercharged
No
Chassis Model
Powerglide
Chassis Brand
Tiffin
Displacement (l)
8.3
Carburetion Type
Fuel Injected
Transmission Type
Automatic
Number Of Speeds
6
Overdrive
Yes
Transmission Brand
Allison
Wheels Composition
Aluminum
Front Wheel Width (in)
8.25
Rear Wheel Width (in)
8.25
Front Tire Diameter (in)
22.5
Rear Tire Diameter (in)
22.5
Number Of Axles
1
Front Tire (Full Spec)
275/80R 22.5
Rear Tire (Full Spec)
275/80R 22.5
Front Brake Type
Hydraulic Disc
Rear Brake Type
Hydraulic Drum
Anti-Lock Brakes
Standard
Air Brake
Standard
Exhaust Brake
Standard
Length (ft/m)
40.42 / 12.3
Width (in/mm)
101 / 2565.4
Height (in/mm)
151 / 3835.4
Wheelbase (in/mm)
266 / 6756.4
Interior Height (in/mm)
84 / 2133.6
Length (ft/ft)
40
Length (ft/in)
5
Towing Capacity (lbs/kgs)
10000 / 4536
GVWR (lbs/kgs)
36000 / 16329.6
Fuel Capacity (gal/l)
100 / 379
Number Of Fresh Water Holding Tanks
1
Total Fresh Water Tank Capacity (gal/l)
90 / 340.7
Number Of Gray Water Holding Tanks
1
Total Gray Water Tank Capacity (gal/l)
70 / 265
Number Of Black Water Holding Tanks
1
Total Black Water Tank Capacity (gal/l)
50 / 189.3
Propane Tank (s)
Standard
Number Of Propane Tanks
1
Total Propane Tank Capacity (gal/lbs)
35.7 / 151.4
Seat Type
Bucket
Seat Material
Leather
Power Adjustable Seat
Yes
Reclining Seats
Yes
Swivel Seats
Yes
Seat Armrests
Yes
Number Of Seats
2
Number Of Rows
1
Body Material
Aluminum
Sidewall Construction
Fiberglass
Number of Doors
1
Sliding Glass Door
No
Number of Slideouts
4
Power Retractable Slideout
Yes
Number of Awnings
1
Power Retractable Awning
Yes
Screened Room
No
Leveling Jack Type
Front Power / Rear Power
Power Retractable Entry Steps
Standard
Sky Light
Standard
Roof Vents
Standard
Exterior Ladder
Standard
Exterior Window Shade / Cover
Standard
Pass-Thru Storage
Standard
Slideout Awning
Standard
Voltage Meter
Standard
Fresh Water Holding Tank Gauge
Standard
Gray Water Holding Tank Gauge
Standard
Black Water Holding Tank Gauge
Standard
Trailer Level Gauge
Standard
Propane Tank Gauge
Standard
Generic Type (Primary)
Class A
Manufacturer Country
USA
Introduction Year
2011
Regional Availability
All Regions
Display Name
Phaeton 40 QKH PowerGlide
Year
2012
Make
Tiffin Motorhomes
MSRP
$0
Kitchen / Living Area Flooring Type
Carpet / Tile
Kitchen Table Configuration
Bench Seats
Kitchen Location
Center
Living Area Location
Front
Number Of Oven Burners
3
Overhead Fan
Yes
Layout
Oven / Stove
Microwave Oven
Standard
Refrigerator Size
Full-Size
Refrigerator Power Mode
Electric
Sink Cover / Cutting Boards
Standard
Number Of Sofas
2
Sofa Material
Leather
Max Sleeping Count
10
Number Of Bunk Beds
2
Number Of Double Beds
0
Number Of Full Size Beds
0
Number Of Queen Size Beds
1
Number Of Convertible / Sofa Beds
3
Master Bedroom Flooring Type
Carpet
Master Bedroom Door Style
Full Sliding Door
Full Size Master Bedroom Closet
Yes
Master Bedroom Mirror Doors
Yes
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Rear
Bunkhouse
Yes
Bed Spreads
Standard
Number Of Bathrooms
1
Bathroom Flooring Type
Tile
Bathroom Location
Center
Toilet Type
Porcelain
Toilet Location
Center
Door Type
Plastic / Glass
Shower Location
Center
Bathroom Sink Location
Center
Bathroom Medicine Cabinet Location
Center
Bathroom Mirror Location
Center
Bathroom Vent / Fan System Location
Center
Sink / Faucet
Standard
Ceiling Fan
Standard
Power Vent Fan
Standard
Battery Power Converter
Yes
Battery Converter Amps
100
Air Conditioning Prewiring
Yes
Cable Prewiring
Yes
Phone Prewiring
Yes
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Satellite Prewiring
Yes
Washer / Dryer Prewiring
Yes
Exterior Plugs
Standard
Ground Fault Plugs
Standard
Generator
Standard
Smoke Detector
Standard
Carbon Monoxide Detector
Standard
Propane Alarm
Standard
Emergency Exit (s)
Standard
Size (in/cm)
2 / 5.1
Rear Hitch Type
Receiver
Air Conditioning Type
Automatic
Heater Type
Automatic
Water Heater Tank Capacity (g/l)
10 / 37.9
Water Heater Pump Power Mode
Electrical / Propane
Water Heater Tank Bypass
Yes
Freeze Proof Insulation
Standard
Satellite
Yes
Number Of Radios
1
Speaker Location (s)
Interior
Surround Sound
Yes
Number Of Discs
1
DVD Player
Standard
Number Of Televisions
2
Retractable Roof Antenna
Standard
Hitch Lights
Standard
Exterior Flood Lights
Standard
Cruise Control
Standard
Power Windows
Standard
Air Suspension
Standard
Rear Video Backup Camera
Standard
Paint
Standard
Wallpaper
Yes
Interior Wood Finish
Yes
Curtains / Shades
Standard
Basic Warranty (Months)
12
Structure Warranty (Months)
120
Roof Warranty (Years)
10
Powertrain Warranty (Months/Miles)
36 / 50000
Chassis Warranty (Months/Miles)
36 / 50000
Driveline Type
4X2
