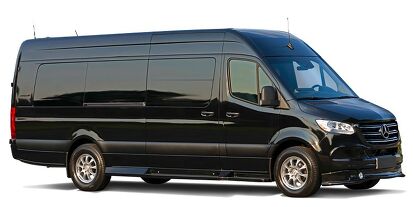

2020 American Coach American Patriot Cruiser SD-B
2020 American Coach American Patriot Cruiser SD-B pictures, prices, information, and specifications.
Type
Class B
Rating
#1 of 10
American Coach Class B RV's
Engine Brand Name
Mercedes-Benz®
Engine Type
V6
Cylinders
6
Horsepower (bhp/kW)
188 / 140
Horsepower RPM
3800
Torque (Ft Lbs/Nm)
325 / 440
Torque RPM
1400
Fuel Requirements
Regular
Fuel Type
Diesel
Turbocharged
Yes
Supercharged
No
Chassis Model
2500
Chassis Brand
Mercedes-Benz® Sprinter
Displacement (l)
3
Carburetion Type
Fuel Injected
Transmission Type
Automatic
Number Of Speeds
7
Overdrive
Yes
Transmission Brand
Mercedes-Benz®
Wheels Composition
Aluminum
Number Of Axles
1
Front Tire (Full Spec)
LT245/75R 16E
Rear Tire (Full Spec)
LT245/75R 16E
Spare Tire Location
Interior Mounted
Front Brake Type
Hydraulic Disc
Rear Brake Type
Hydraulic Disc
Anti-Lock Brakes
Standard
Width (in/mm)
83 / 2108.2
Height (in/mm)
114 / 2895.6
Wheelbase (in/mm)
144 / 3657.6
Interior Height (in/mm)
74 / 1879.6
Towing Capacity (lbs/kgs)
5000 / 2268
GVWR (lbs/kgs)
8550 / 3878.3
Fuel Capacity (gal/l)
24.5 / 92.7
Number Of Fresh Water Holding Tanks
1
Total Fresh Water Tank Capacity (gal/l)
18 / 68.1
Number Of Gray Water Holding Tanks
1
Total Gray Water Tank Capacity (gal/l)
10 / 37.9
Number Of Black Water Holding Tanks
1
Total Black Water Tank Capacity (gal/l)
12.5 / 47.3
Seat Type
Bucket
Seat Material
Leather
Power Adjustable Seat
No
Reclining Seats
Yes
Swivel Seats
Yes
Seat Armrests
Yes
Number Of Seats
4
Number Of Rows
2
Construction
Standard
Number of Doors
1
Sliding Glass Door
No
Number of Slideouts
0
Power Retractable Slideout
No
Roof Vents
Standard
Exterior Window Shade / Cover
Standard
Exterior Shower
Standard
GPS
Standard
Voltage Meter
Standard
Fresh Water Holding Tank Gauge
Standard
Gray Water Holding Tank Gauge
Standard
Black Water Holding Tank Gauge
Standard
Water Pump Power Display
Standard
Generic Type (Primary)
Class B
Manufacturer Country
USA
Introduction Year
2020
Regional Availability
All Regions
Display Name
American Patriot Cruiser SD-B
Year
2020
Make
American Coach
MSRP
$0
Kitchen / Living Area Flooring Type
Vinyl
Kitchen Table Configuration
None
Living Area Location
Center
Microwave Oven
Standard
Refrigerator Size
Compact
Refrigerator Power Mode
Electric
Number Of Sofas
2
Sofa Material
Leather
Reclining Sofa
No
Number Of Recliner / Rockers
2
Material
Leather
Max Sleeping Count
2
Number Of Double Beds
0
Number Of Full Size Beds
0
Number Of Queen Size Beds
0
Number Of Convertible / Sofa Beds
1
Bunkhouse
No
Heated
No
Number Of Bathrooms
1
Bathroom Flooring Type
Tile
Bathroom Location
Rear
Toilet Type
Porcelain
Toilet Location
Rear
Bathroom Sink Location
Rear
Bathroom Vent / Fan System Location
Rear
Power Vent Fan
Standard
Battery Power Converter
Yes
Air Conditioning Prewiring
Yes
Cable Prewiring
Yes
Phone Prewiring
No
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Satellite Prewiring
Yes
Washer / Dryer Prewiring
No
Exterior Plugs
Standard
Ground Fault Plugs
Standard
Solar Battery Charger
Standard
Security Alarm
Standard
Smoke Detector
Standard
Carbon Monoxide Detector
Standard
Emergency Exit (s)
Standard
Number Of Emergency Exits
1
Tongue Weight (lbs/kgs)
500 / 226.8
Rear Hitch Type
Receiver
Air Conditioning Type
Automatic
Heater Type
Automatic
Water Heater Tank
Standard
Freeze Proof Insulation
Standard
Brand Name
JL Audio
Satellite
Yes
Number Of Radios
2
Speaker Location (s)
Interior
Surround Sound
Yes
Number Of Discs
1
DVD Player
Standard
Television Brand Name
Samsung
Number Of Televisions
1
Retractable Roof Antenna
Standard
Exterior Flood Lights
Standard
Cruise Control
Standard
Power Windows
Standard
Rear Video Backup Camera
Standard
Paint
Standard
Wallpaper
Yes
Interior Wood Finish
Yes
Curtains / Shades
Standard
Basic Warranty (Months)
36
Structure Warranty (Months/Miles)
36 / 36000
Roof Warranty (Years)
3
Powertrain Warranty (Months/Miles)
60 / 100000
Chassis Warranty (Months/Miles)
36 / 36000
Driveline Type
4X2
