2020 American Coach American Patriot Cruiser SD-A

User Rating RVGuide.com 7 of 51
2020 Class B RV's
Overall
Performance
Quality & Reliability
Interior
Overall Value
  • MSRP: $TBA
  • Financing:
  • Type: Class B
  • Insurance:

2020 American Coach American Patriot Cruiser SD-A

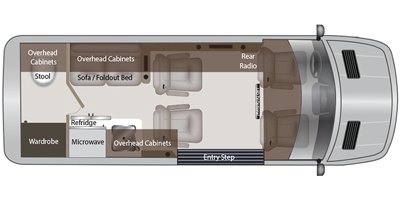

2020 American Coach American Patriot Cruiser SD-A Floorplan View Floorplan

2020 American Coach American Patriot Cruiser SD-A Specifications

hide Engine:
Engine Brand Name  Mercedes-Benz®
Engine Type  V6
Cylinders  6
Horsepower (bhp/kW)  188 / 140
Horsepower RPM  3800
Torque (Ft Lbs/Nm)  325 / 440
Torque RPM  1400
Fuel Requirements  Regular
Fuel Type  Diesel
Turbocharged  Yes
Supercharged  No
Chassis Model  2500
Chassis Brand  Mercedes-Benz® Sprinter
Displacement (l)  3
Carburetion Type  Fuel Injected
hide Transmission:
Transmission Type  Automatic
Number Of Speeds  7
Overdrive  Yes
Transmission Brand  Mercedes-Benz®
hide Wheels & Tires:
Wheels Composition  Aluminum
Number Of Axles  1
Front Tire (Full Spec)  LT245/75R 16E
Rear Tire (Full Spec)  LT245/75R 16E
Spare Tire Location  Interior Mounted
hide Brakes:
Front Brake Type  Hydraulic Disc
Rear Brake Type  Hydraulic Disc
Anti-Lock Brakes  Standard
hide Technical Specifications:
Width (in/mm)  83 / 2108.2
Height (in/mm)  114 / 2895.6
Wheelbase (in/mm)  144 / 3657.6
Interior Height (in/mm)  74 / 1879.6
Towing Capacity (lbs/kgs)  5000 / 2268
GVWR (lbs/kgs)  8550 / 3878.3
Fuel Capacity (gal/l)  24.5 / 92.7
Number Of Fresh Water Holding Tanks  1
Total Fresh Water Tank Capacity (gal/l)  18 / 68.1
Number Of Gray Water Holding Tanks  1
Total Gray Water Tank Capacity (gal/l)  10 / 37.9
Number Of Black Water Holding Tanks  1
Total Black Water Tank Capacity (gal/l)  12.5 / 47.3
hide Seats:
Seat Type  Bucket
Seat Material  Leather
Power Adjustable Seat  No
Reclining Seats  Yes
Swivel Seats  Yes
Seat Armrests  Yes
Number Of Seats  4
Number Of Rows  2
hide Exterior:
Construction  Standard
Number of Doors  1
Sliding Glass Door  No
Number of Slideouts  0
Power Retractable Slideout  No
Roof Vents  Standard
Exterior Window Shade / Cover  Standard
Exterior Shower  Standard
hide Instrumentation:
GPS  Standard
Voltage Meter  Standard
Fresh Water Holding Tank Gauge  Standard
Gray Water Holding Tank Gauge  Standard
Black Water Holding Tank Gauge  Standard
Water Pump Power Display  Standard
hide Identification:
Generic Type (Primary)  Class B
Manufacturer Country  USA
Introduction Year  2020
Regional Availability  All Regions
Display Name  American Patriot Cruiser SD-A
hide Interior:
Kitchen / Living Area Flooring Type  Vinyl
Kitchen Table Configuration  None
Kitchen Location  Center
Living Area Location  Center
Microwave Oven  Standard
Refrigerator Size  Compact
Refrigerator Power Mode  Electric
Sink Cover / Cutting Boards  Standard
Number Of Sofas  1
Sofa Material  Leather
Reclining Sofa  No
Number Of Recliner / Rockers  2
Material  Leather
Max Sleeping Count  2
Number Of Double Beds  0
Number Of Full Size Beds  0
Number Of Queen Size Beds  0
Number Of Convertible / Sofa Beds  1
Bunkhouse  No
Heated  No
Number Of Bathrooms  1
Bathroom Flooring Type  Tile
Bathroom Location  Rear
Toilet Type  Porcelain
Bathroom Vent / Fan System  Standard
Sink / Faucet  Standard
Power Vent Fan  Standard
hide Electrical:
Battery Power Converter  Yes
Air Conditioning Prewiring  Yes
Cable Prewiring  Yes
Phone Prewiring  No
Heat Prewiring  Yes
TV Antenna Prewiring  Yes
Satellite Prewiring  Yes
Washer / Dryer Prewiring  No
Exterior Plugs  Standard
Ground Fault Plugs  Standard
Solar Battery Charger  Standard
hide Other:
Security Alarm  Standard
Smoke Detector  Standard
Carbon Monoxide Detector  Standard
Emergency Exit (s)  Standard
Number Of Emergency Exits  1
hide Towing & Hauling:
Tongue Weight (lbs/kgs)  500 / 226.8
Rear Hitch Type  Receiver
hide Heater & Cooler:
Air Conditioning Type  Automatic
Heater Type  Automatic
Water Heater Tank  Standard
Freeze Proof Insulation  Standard
hide Audio & Communication:
Brand Name  JL Audio
Satellite  Yes
Number Of Radios  2
Speaker Location (s)  Interior
Surround Sound  Yes
Number Of Discs  1
DVD Player  Standard
Television Brand Name  Samsung
Number Of Televisions  1
Retractable Roof Antenna  Standard
hide Lights:
Exterior Flood Lights  Standard
hide Convenience:
Cruise Control  Standard
Power Windows  Standard
Rear Video Backup Camera  Standard
hide Paint & Finish:
Paint  Standard
Wallpaper  Yes
Interior Wood Finish  Yes
Curtains / Shades  Standard
hide Warranty:
Basic Warranty (Months)  36
Structure Warranty (Months/Miles)  36 / 36000
Roof Warranty (Years)  3
Powertrain Warranty (Months/Miles)  60 / 100000
Chassis Warranty (Months/Miles)  36 / 36000
hide Drive Line:
Driveline Type  4X2
