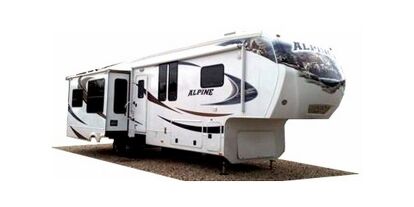

2010 Keystone Alpine 3640RL


Type
Fifth Wheel
Specs
Wheels Composition
Steel
Rear Wheel Width (in)
6
Number Of Axles
2
Rear Tire (Full Spec)
235/80 R16E
Spare Tire Location
Exterior Mounted
Rear Brake Type
Electric Drum
Length (ft/m)
40.5 / 12.3
Width (in/mm)
96 / 2438.4
Height (in/mm)
152 / 3860.8
Length (ft/ft)
40
Length (ft/in)
6
Dry Weight (lbs/kg)
12320 / 5588.4
Payload Capacity (lbs/kgs)
3180 / 1442.4
Hitch Weight (lbs/kgs)
2535 / 1149.9
Capacities
Standard
Number Of Fresh Water Holding Tanks
1
Total Fresh Water Tank Capacity (gal/l)
66 / 249.8
Number Of Gray Water Holding Tanks
1
Total Gray Water Tank Capacity (gal/l)
70 / 265
Number Of Black Water Holding Tanks
1
Total Black Water Tank Capacity (gal/l)
50 / 189.3
Propane Tank (s)
Standard
Number Of Propane Tanks
2
Total Propane Tank Capacity (gal/lbs)
14.2 / 60
Body Material
Aluminum
Sidewall Construction
Fiberglass
Number of Doors
1
Sliding Glass Door
No
Number of Slideouts
3
Power Retractable Slideout
Yes
Number of Awnings
1
Power Retractable Awning
Yes
Screened Room
No
Leveling Jack Type
Front Power / Rear Power
Sky Light
Standard
Roof Vents
Standard
Exterior Ladder
Standard
Exterior Shower
Standard
Pass-Thru Storage
Standard
Voltage Meter
Standard
Fresh Water Holding Tank Gauge
Standard
Gray Water Holding Tank Gauge
Standard
Black Water Holding Tank Gauge
Standard
Propane Tank Gauge
Standard
Generic Type (Primary)
Fifth Wheel
Manufacturer Country
USA
Introduction Year
2010
Regional Availability
All Regions
Display Name
Alpine 3640RL
Year
2010
Make
Keystone
MSRP
$TBA
Battery Power Converter
Yes
Air Conditioning Prewiring
Yes
Cable Prewiring
Yes
Phone Prewiring
Yes
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Satellite Prewiring
Yes
Washer / Dryer Prewiring
Yes
Exterior Plugs
Standard
Ground Fault Plugs
Standard
Air Conditioning Type
Automatic
Heater Type
Automatic
Water Heater Tank Capacity (g/l)
12 / 45.4
Water Heater Pump Power Mode
Electrical / Propane
Water Heater Tank Bypass
Yes
Freeze Proof Insulation
Standard
Smoke Detector
Standard
Carbon Monoxide Detector
Standard
Propane Alarm
Standard
Emergency Exit (s)
Standard
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Kitchen Table Configuration
Chairs
Kitchen Location
Center
Living Area Location
Rear
Number Of Oven Burners
3
Oven Depth (in/mm)
22 / 558.8
Overhead Fan
Yes
Layout
Oven / Stove
Microwave Oven
Standard
Refrigerator Size
Mid-Size
Refrigerator Power Mode
Electric / Propane
Sink Cover / Cutting Boards
Standard
Number Of Sofas
1
Sofa Material
Cloth
Number Of Recliner / Rockers
2
Material
Cloth
Fireplace
Standard
Max Sleeping Count
4
Number Of Bunk Beds
0
Number Of Double Beds
0
Number Of Full Size Beds
0
Number Of Queen Size Beds
0
Number Of King Size Beds
1
Number Of Convertible / Sofa Beds
1
Master Bedroom Flooring Type
Carpet
Master Bedroom Door Style
Full Sliding Door
Full Size Master Bedroom Closet
Yes
Master Bedroom Mirror Doors
Yes
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Front
Upgraded Matress
Standard
Bed Spreads
Standard
Number Of Bathrooms
1
Bathroom Flooring Type
Vinyl
Bathroom Location
Center
Toilet Type
Porcelain
Toilet Location
Center
Door Type
Plastic / Glass
Shower Location
Center
Bathroom Sink Location
Center
Bathroom Medicine Cabinet Location
Center
Bathroom Mirror Location
Center
Bathroom Vent / Fan System Location
Center
Sink / Faucet
Standard
Ceiling Fan
Standard
Power Vent Fan
Standard
Satellite
No
Number Of Radios
1
Speaker Location (s)
Interior
Surround Sound
Yes
Number Of Discs
1
DVD Player
Standard
Number Of Televisions
2
Retractable Roof Antenna
Standard
Hitch Lights
Standard
Exterior Flood Lights
Standard
Paint
Standard
Wallpaper
Yes
Interior Wood Finish
Yes
Curtains / Shades
Standard
Structure Warranty (Months)
12
Roof Warranty (Years)
12
Basic Warranty (Months)
12
User Reviews
2 reviews
-
(2)By G. L. Wood (Owner) on Mar 14, 2011I purchased 5th wheel in August 2010 and by October I took it to a Keystone dealer for warranty work. I'm 350 miles the dealer where purchased, so I tried to have a Keystone dealer within 60 miles to do the warrant work and they would not because I did not purchase from them. So, another dealer 120 ... miles distance was very helpful. The main things that needed corrected was the (1) underbelly of the front half was sagging and this was corrected by installed 4 steel bars across to better support the belly area from sagging. (2). The grey and black tank labeling were reversed and that was corrected. 3. Vacuum system: outlet in storage compartment was disconnected. 4. Heating system: Very little heat coming through the two vents in living room and lot of heat come through vents in hallway and bedroom. Heat duct was shortened to living room, but did not help. Factory told me if there is not over 7 degree temp change from living room comparted to bedroom, then there is no heating problem of the vents. Apparently, heat venting system to living room is insufficient. Therefore, this was not corrected because the temp difference is less than 7 degrees. I have ended up using a electric heater in the living room. Item 1-3 were corrected. I felt the factory was very cooperative on the warranty for items 1-3 and the dealer doing the warranty work was super. Discovered later after the warranty work: 1. In the storage compartment in back of the thin plywood wall, there are large cracks by the water lines that lead to underneath between the steel frame and belly cover. Also, large round openings where the cables that adjust the openings of the black/grey tanks. I have done some insulating to keep the water pipes from freezing. 2. Heat vent for the storage compartment was blocked off and I connected. 3. Interior steps that lead to the hallway have two separate open vents that lead into the furnace area under the floor that causes lot of cold draft when the furnace is not running. Was told by the dealer that these vents are for a purpose so the furnace can get proper air circulation, therefore do not plug up these vents or it will cause the furnace to malfunction. There is still cold air drafts and nothing can be done to correct. There needs to be a better design. 4. Discovered later that this unit will not withstand real cold temperatures as the factory told me later it is not designed for temp below 30 degrees and to be used for short vacations only. We are using it in very cold climit area, so it is a problem. Dealer told us this unit would withstand very cold temp as it has a Alps package and heats storage area and pipes plus having extra installation. Dealer was very misleading. I suggest every one to do your home work on RV's to see how much they protect water pipes from freezing as there are other 5th wheels that have better protection features for cold and warm weather. I did not do good enough home work and learned a very expensive lesson.Read More
-
(2)By BARRY Bungenstock (Owner) on Jun 25, 2010I purchased a new unit and the first time out the air controller for the air conditoners did not work, also the handles that marked the black and grey water were marked wrong. Had to take back to have replaced. Now works fine.
