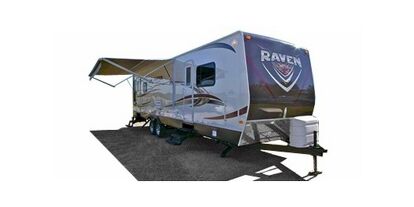

2013 SunnyBrook Raven 3121FK
2013 SunnyBrook Raven 3121FK pictures, prices, information, and specifications.
Type
Travel Trailer
Rating
#1 of 26
SunnyBrook Travel Trailer RV's
1
Year
2013
Parent Company
Sunnybrook RV Inc.
Generic Type (Primary)
Travel Trailer
Make
SunnyBrook
Display Name
Raven 3121FK
Manufacturer Country
USA
Introduction Year
2012
Regional Availability
All Regions
Price
Standard
Basic Warranty (Months)
12
Structure Warranty (Months)
12
Roof Warranty (Years)
12
Dimensions
Standard
Weight
Standard
Capacities
Standard
Holding Tanks
Standard
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Number Of Propane Tanks
2
Length (in/mm/ft/m)
406 / 10300 / 33.83 / 10.3
Width (in/mm)
96 / 2438.4
Height (in/mm)
133 / 3378.2
Dry Weight (lbs/kg)
7760 / 3519.9
Payload Capacity (lbs/kgs)
3420 / 1551.3
GVWR (lbs)
11180
Hitch Weight (lbs)
1020
Total Fresh Water Tank Capacity (gal/l)
50 / 189.3
Total Gray Water Tank Capacity (gal/l)
70 / 132.5
Total Black Water Tank Capacity (gal/l)
35 / 132.5
Propane Tank (s)
Standard
Total Propane Tank Capacity (gal/lbs)
14.2 / 60
Construction
Standard
Body Material
Aluminum
Sidewall Construction
Fiberglass
Number of Doors
2
Sliding Glass Door
No
Slideouts
Standard
Number of Slideouts
2
Power Retractable Slideout
Yes
Awning
Standard
Number of Awnings
1
Power Retractable Awning
Yes
Screened Room
No
Leveling Jacks
Standard
Leveling Jack Type
Front Manual / Rear Manual
Sky Light
Standard
Roof Vents
Standard
Exterior Ladder
Standard
Propane Tank Cover
Standard
Exterior Shower
Standard
Awning Length (ft/m)
20 / 6.1
Kitchen / Living Area
Standard
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Kitchen Table Configuration
Bench Seats
Kitchen Location
Front
Living Area Location
Center
Layout
Oven / Stove
Number Of Oven Burners
3
Overhead Fan
Yes
Microwave Oven
Standard
Refrigerator
Standard
Refrigerator Size
Mid-Size
Refrigerator Power Mode
Electric / Propane
Sink / Faucet
Standard
Sink Cover / Cutting Boards
Standard
Sofa
Standard
Number Of Sofas
1
Sofa Material
Cloth
Recliners / Rockers
Standard
Number Of Recliner / Rockers
1
Material
Cloth
Beds
Standard
Max Sleeping Count
6
Number Of Queen Size Beds
1
Number Of Convertible / Sofa Beds
2
Master Bedroom
Standard
Master Bedroom Flooring Type
Carpet
Master Bedroom Door Style
Curtain
Full Size Master Bedroom Closet
Yes
Master Bedroom Mirror Doors
No
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Rear
Bunkhouse
No
Bed Spreads
Standard
Bathroom
Standard
Number Of Bathrooms
1
Bathroom Flooring Type
Vinyl
Bathroom Location
Center
Toilet
Standard
Toilet Type
Porcelain
Shower
Standard
Door Type
Plastic / Glass
Bathroom Sink
Standard
Bathroom Medicine Cabinet
Standard
Bathroom Mirror
Standard
Bathroom Vent / Fan System
Standard
Power Vent Fan
Optional
Oven Depth (in/mm)
22 / 558.8
Wheels
Standard
Wheels Composition
Steel
Number Of Axles
2
Tires
Standard
Rear Tire Width
225
Rear Tire Aspect Ratio
75
Rear Tire Speed Rating
D
Rear Wheel Diameter
15
Spare Tire
Standard
Spare Tire Location
Exterior Mounted
Rear Tire (Full Spec)
225/75R 15D
Brakes
Standard
Front Brake Type
Not Applicable
Rear Brake Type
Electric Drum
Propane Tank Gauge
Standard
Fresh Water Holding Tank Gauge
Standard
Gray Water Holding Tank Gauge
Standard
Black Water Holding Tank Gauge
Standard
Water Pump Power Display
Standard
Voltage Meter
Standard
Exterior Flood Lights
Standard
Battery
Standard
Battery Power Converter
Yes
Battery Converter Amps
75
Prewiring
Standard
Air Conditioning Prewiring
Yes
Cable Prewiring
Yes
Phone Prewiring
Yes
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Satellite Prewiring
Yes
Washer / Dryer Prewiring
No
Exterior Plugs
Standard
Ground Fault Plugs
Standard
Air Conditioning
Standard
Air Conditioning Type
Automatic
Heater
Standard
Heater Type
Automatic
Water Heater Tank
Standard
Water Heater Pump Power Mode
Electrical / Propane
Water Heater Tank Bypass
Yes
Freeze Proof Insulation
Standard
Water Heater Tank Capacity (g/l)
6 / 22.7
Smoke Detector
Standard
Carbon Monoxide Detector
Standard
Propane Alarm
Standard
Emergency Exit (s)
Standard
Radio
Standard
Number Of Radios
1
Satellite
No
Speakers
Standard
Surround Sound
Yes
CD Player
Standard
Number Of Discs
1
DVD Player
Standard
Television
Standard
Number Of Televisions
1
Retractable Roof Antenna
Standard
Speaker Location (s)
Interior / Exterior
Paint
Standard
Metallic
No
Interior Decor
Standard
Wallpaper
Yes
Interior Wood Finish
Yes
Curtains / Shades
Standard
User Reviews
1 review
-
Likes and Dislikes for my Sunnybrook 3121FK
By Richard Walker (I am an Owner) on Nov 24, 2013Having owned a few trailers starting back in 1973 with a used Coachman, then a new 30'Dutchman then a new 32'Prowler and now my new Sunnybrook I feel somewhat qualified to comment. When I bought the Dutchman I heard from a few people it was a cheap entry level trailer but I owned it until we purchased ... the Prowler and never had any problems at all. The Prowler had an issue day one with the hot water electronic ignition system and a few other minor problems but the main problem was water leaching up between the fiberglass sides and soaking the insulation and ultimately causing damage to the inside walls(won't go into the failed refrigerator with 5 lbs. of lake perch in the freezer, thanks Dometic). Now onto the Sunnybrook(always wanted one)my wife agreed so we started looking, she found the 3121FK. I looked at the things I would be taking care of and left the interior design, layout etc. to her. Ok now for the stuff you are reading this for: The good..Gelcoat finish is great, sealed under belly, good paint on exposed surfaces. All in all not bad. The bad: some of the storage compartment openings had little or no sealer in spots. There was and still is a hole when the slide in living room is pulled, dealer promised to check with the factory to see what can be done, that was Oct 28th,2013,still waiting. The vinyl strips covering the screws along the top rail and rear rails were cut short leaving exposed screws. The rubber seals on the trailer body where the slides mate pulled away from the trailer because the white goo(glue)was never removed. So the lower seal on the bedroom slide opening will have to be replaced, the awning over the front slide will have to be removed so the seal at the top opening can be cleaned and reinstalled, hopefully. On the inside the shower door mounts came loose again(they were repaired once prior to the delivery), the shelf in the bathroom vanity had not been secured so I bought some 3/4 round, cut it, stained to match and installed it. Couldn't get rear TV to work as a screw on the trim plate behind the front TV was installed into the cable to the rear which was grounding it out. It has a 10 gal. hot water heater that is great but when you turn it on the high pressure pop off starts to leak unless you turn the hot water on to burp the system ???. By the way if you buy one make sure the battery enclosure has holes in the bottom to drain the water if the cover has vents in it because the water drips off the front and runs into the battery case. I found this out when our touch radio-cd-dvd player locked up and I had to disconnect the battery to discharge the lock-up(disconnect the 30 amp service, disconnect one cable and touch it to the other post for about 30 seconds) fixed! The window shades(accordion style) are a pain, not only to use but adjust( wife wants the old style blinds installed)Thermostat could be made more user friendly. A/c works well, cooling the back and front very well. Furnace works well, a little noisy. Power awning works well as do the electric support jacks. This is a nice 2 person trailer as the couch with the air mattress would be ok for grandkids for short visits.....One or two final comments, if Sunnybrook/Winnebago has a quality control inspector he obviously dropped the ball on ours, maybe some more training is in order. Last but not least do the people who design and build travel trailers ever spend a weekend in them because if they did they would put the Microwave where the average person could reach it safely. Having said all of the above we do get complements, all saying how nice it looks. Thanks for allowing the rant. Note: All my photos are on my I-phone so they could be emailed.Rating breakdown
