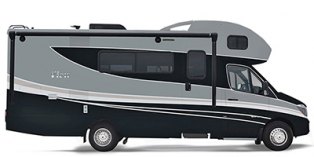

2019 Winnebago View 24V
2019 Winnebago View 24V pictures, prices, information, and specifications.
Engine Brand Name
Mercedes-Benz®
Engine Type
V6
Cylinders
6
Horsepower (bhp/kW)
188 / 140.3
Horsepower RPM
3800
Torque (Ft Lbs/Nm)
325 / 440
Torque RPM
1400
Fuel Requirements
Regular
Fuel Type
Diesel
Turbocharged
Yes
Supercharged
No
Chassis Model
3500
Chassis Brand
Mercedes-Benz® Sprinter
Displacement (l)
3
Carburetion Type
Fuel Injected
Transmission Type
Automatic
Number Of Speeds
5
Overdrive
Yes
Transmission Brand
Mercedes-Benz®
Wheels Composition
Steel
Number Of Axles
1
Front Tire (Full Spec)
LT 215/85 R16E
Rear Tire (Full Spec)
LT 215/85 R16E
Spare Tire Location
Exterior Mounted
Front Brake Type
Hydraulic Disc
Rear Brake Type
Hydraulic Disc
Anti-Lock Brakes
Standard
Length (ft/m)
25.58 / 7.8
Width (in/mm)
90 / 2286
Height (in/mm)
134 / 3403.6
Wheelbase (in/mm)
170 / 4318
Interior Height (in/mm)
80 / 2032
Length (ft/ft)
25
Length (ft/in)
7
Towing Capacity (lbs/kgs)
5000 / 2268
GVWR (lbs/kgs)
11030 / 5003.2
Fuel Capacity (gal/l)
26.4 / 99.9
Storage Capacity (cuft/gal/l)
43 / 276.4 / 1217.6
Number Of Fresh Water Holding Tanks
1
Total Fresh Water Tank Capacity (gal/l)
31 / 117.3
Number Of Gray Water Holding Tanks
1
Total Gray Water Tank Capacity (gal/l)
36 / 136.3
Number Of Black Water Holding Tanks
1
Total Black Water Tank Capacity (gal/l)
36 / 136.3
Propane Tank (s)
Standard
Number Of Propane Tanks
1
Total Propane Tank Capacity (gal/lbs)
13 / 55.1
Seat Type
Bucket
Seat Material
Vinyl
Power Adjustable Seat
No
Reclining Seats
Yes
Swivel Seats
Yes
Seat Armrests
Yes
Number Of Seats
2
Number Of Rows
1
Body Material
Aluminum
Sidewall Construction
Fiberglass
Number of Doors
1
Sliding Glass Door
No
Number of Slideouts
1
Power Retractable Slideout
Yes
Number of Awnings
1
Awning Length (ft/m)
16 / 4.9
Power Retractable Awning
Yes
Screened Room
No
Power Retractable Entry Steps
Standard
Sky Light
Standard
Roof Vents
Standard
Exterior Ladder
Standard
Exterior Window Shade / Cover
Standard
Voltage Meter
Standard
Fresh Water Holding Tank Gauge
Standard
Gray Water Holding Tank Gauge
Standard
Black Water Holding Tank Gauge
Standard
Water Pump Power Display
Standard
Propane Tank Gauge
Standard
Generic Type (Primary)
Class C
Manufacturer Country
USA
Introduction Year
2013
Regional Availability
All Regions
Display Name
View 24V
Year
2019
Make
Winnebago
MSRP
$140,278
Kitchen / Living Area Flooring Type
Vinyl
Kitchen Table Configuration
Pedestal Table
Kitchen Location
Center
Living Area Location
Front
Number Of Oven Burners
2
Overhead Fan
Yes
Layout
Oven / Stove
Microwave Oven
Standard
Refrigerator Size
Mid-Size
Refrigerator Power Mode
Electric / Propane
Sink Cover / Cutting Boards
Standard
Number Of Sofas
1
Sofa Material
Vinyl
Number Of Recliner / Rockers
0
Max Sleeping Count
6
Number Of Bunk Beds
2
Number Of Double Beds
1
Number Of Full Size Beds
0
Number Of Queen Size Beds
0
Number Of King Size Beds
0
Number Of Convertible / Sofa Beds
1
Master Bedroom Flooring Type
Carpet / Vinyl
Master Bedroom Door Style
Curtain
Full Size Master Bedroom Closet
No
Master Bedroom Mirror Doors
No
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Rear
Bunkhouse
No
Bed Spreads
Standard
Number Of Bathrooms
1
Bathroom Flooring Type
Vinyl
Bathroom Location
Center
Toilet Type
Porcelain
Toilet Location
Center
Door Type
Plastic / Glass
Shower Location
Center
Bathroom Sink Location
Center
Bathroom Medicine Cabinet Location
Center
Bathroom Mirror Location
Center
Bathroom Vent / Fan System Location
Center
Sink / Faucet
Standard
Power Vent Fan
Standard
Battery Power Converter
Yes
Battery Converter Amps
45
Air Conditioning Prewiring
Yes
Cable Prewiring
Yes
Phone Prewiring
No
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Satellite Prewiring
Yes
Washer / Dryer Prewiring
No
Exterior Plugs
Standard
Ground Fault Plugs
Standard
Solar Battery Charger
Standard
Generator
Standard
Smoke Detector
Standard
Carbon Monoxide Detector
Standard
Propane Alarm
Standard
Emergency Exit (s)
Standard
Tongue Weight (lbs/kgs)
5000 / 2268
Rear Hitch Type
Receiver
Air Conditioning Type
Automatic
Heater Type
Automatic
Water Heater Tank Capacity (g/l)
6 / 22.7
Water Heater Pump Power Mode
Electrical / Propane
Water Heater Tank Bypass
Yes
Freeze Proof Insulation
Standard
Satellite
Yes
Number Of Radios
2
Speaker Location (s)
Interior / Exterior
Surround Sound
Yes
Number Of Discs
1
DVD Player
Standard
Number Of Televisions
1
Retractable Roof Antenna
Standard
Exterior Flood Lights
Standard
Cruise Control
Standard
Power Windows
Standard
Rear Video Backup Camera
Standard
Metallic
No
Wallpaper
Yes
Interior Wood Finish
Yes
Curtains / Shades
Standard
Basic Warranty (Months)
12
Structure Warranty (Months/Miles)
36 / 36000
Roof Warranty (Years)
10
Powertrain Warranty (Months/Miles)
60 / 100000
Chassis Warranty (Months/Miles)
36 / 36000
Driveline Type
4X2
